Fiber Reinforced Polymer Decks
Fiber reinforced polymers (FRP), primarily used in the aerospace industry, are being applied to the design of bridges.
FRP composites are primarily made up of fibers aligned within a resin material in such a way to make a very strong and very customizable material.

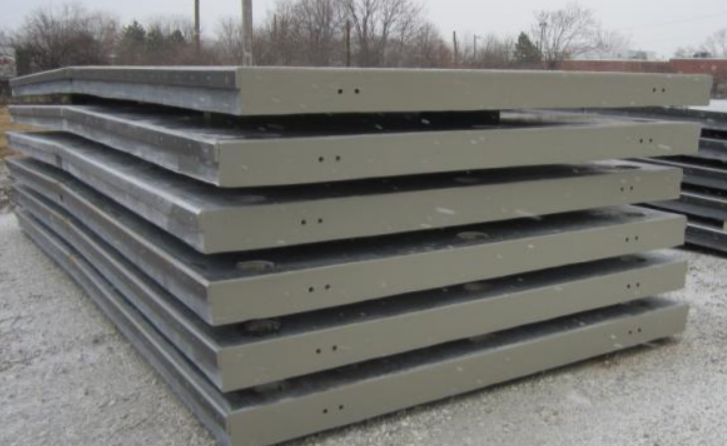

FRB Deck Panels. Photo Credit: Composite Advantage
The most common fiber choices are glass and carbon fibers. In the use of bridge decking, FRP has been molded into cellular panels that can be installed as full-depth deck panels.

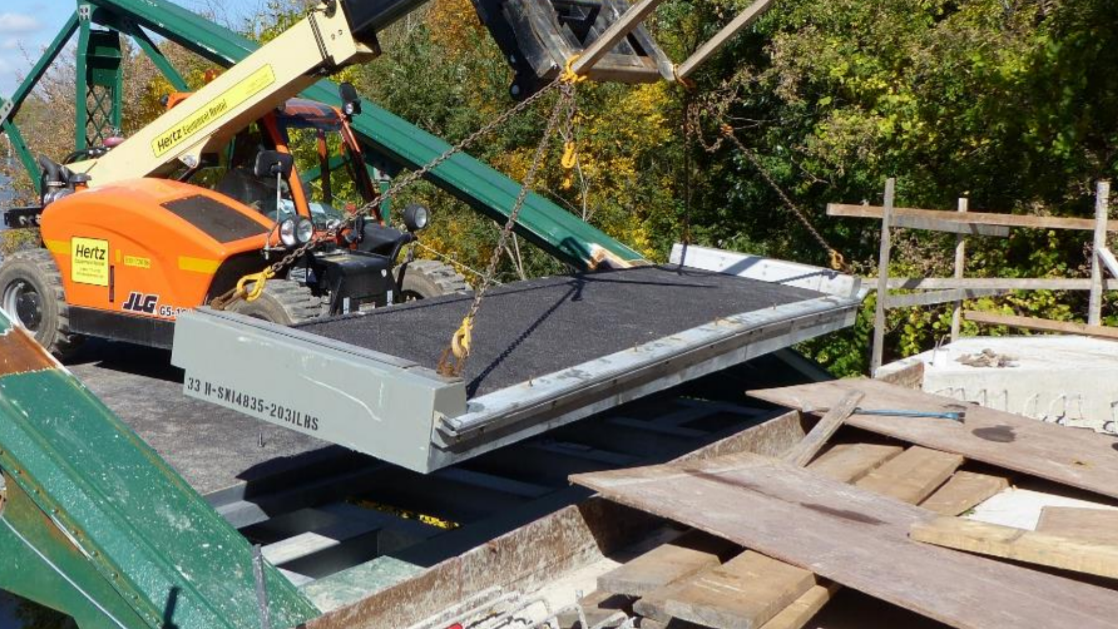

FRP deck panels are used as an alternative to cast-in-place concrete decks. They provide a driving surface for traffic
The panels are designed to interlock with male-female shear keys. Another option for connecting the panels is the use of high-quality epoxy adhesives. To connect the panels to the steel framing, pockets are formed over the beams to allow for welded stud shear connectors and non-shrink grout. Bolts can also be used to connect the panels to the steel framing.
FRP products have the benefits of high strength, low weight, high stiffness-to-weight ratio, and corrosion resistance. Efficiencies are gained by the deck being prepared in panels and in the transporting to job site and placing practices.
*Photo Credit: Composite Advantage
What is a bridge deck?
The decking system of a bridge can be defined as the surface upon which the traversing traffic drives. This is the surface which is used as a continuation of the driving surface on either side of the bridge.
Commonly, cast-in-place concrete is used as the method of placing a deck on a short span bridge, but due to the time of preparing formwork, it can be a very time-consuming process.
Prefabricated deck systems are some of the most commonly used applications of modular bridge technology.
