Turning a Challenge Into an Innovative Design Solution
“Necessity is the mother of invention,” claims a popular adage. But sometimes lasting change comes from a good old-fashioned challenge.
One example is when the Federal Highway Administration (FHWA) charged the North American steel industry in 2009 to “develop a cost-effective short span steel bridge with modular components which could be placed into the mainstream and meet the needs of today’s bridge owners, including Accelerated Bridge Construction (ABC).” Grappling with a national bridge inventory overrun with structurally deficient and functionally obsolete structures―nearly half of which fall in the short span category of under 140 feet―the agency was ready for some new ideas.
Stepping up to the challenge, the Short Span Steel Bridge Alliance (SSSBA) reached out to 30 steel-related and government organizations, university faculty and bridge owners to tackle the problem. The Modular Steel Bridge Task Group was born, with Karl Barth, Ph.D., P.E., Samples Professor – Civil and Environmental Engineering at West Virginia University, appointed as chairman. After considering several options, the group decided on a shallow steel press-brake tub girder technology ― also known as folded plate girder or folded plate ― to meet the FHWA objectives for economic value, innovation, and ABC practices. A preliminary specimen design for the new system was developed, and three years of initial testing followed. Remarkably, the idea went from concept to reality in just three years.
What’s a PBTG?
The press-brake-formed tub girder (PBTG) system is different from a traditional bridge because it consists of modular galvanized shallow trapezoidal boxes fabricated from cold-bent structural steel plate. The modules are available in hot-dipped galvanized or weathering steels, and can be easily transported by truck to the project site.
The system utilizes standard plate widths (based on availability) and is optimized to achieve maximum structural capacity, with most of the steel in the bottom flange and increased torsional stiffness. It is versatile for multiple-deck options.
Modular precast decks are recommended. Deck options include pre-topped, Sandwich Plate System, full-depth panel and partial-depth panel.
Mastering the ABCs
The press-brake-formed tub girder system utilizes Accelerated Bridge Construction practices, since:
• The tub girders can be installed in one or two days.
• It’s modular, allowing the use of a precast deck.
• It’s cost-effective―as much as 1/3 less than a standard concrete girder structure.
• It’s simple to fabricate, requiring very little welding.
• It reduces the need for additional details such as stiffeners and cross frames.
Press-brake-formed tub girders can be used for both tangent and skewed configurations, as well as simple and continuous spans. They are recommended for single spans up to 60 feet, but can be spliced for spans up to 80 feet.
From Blueprint to Service

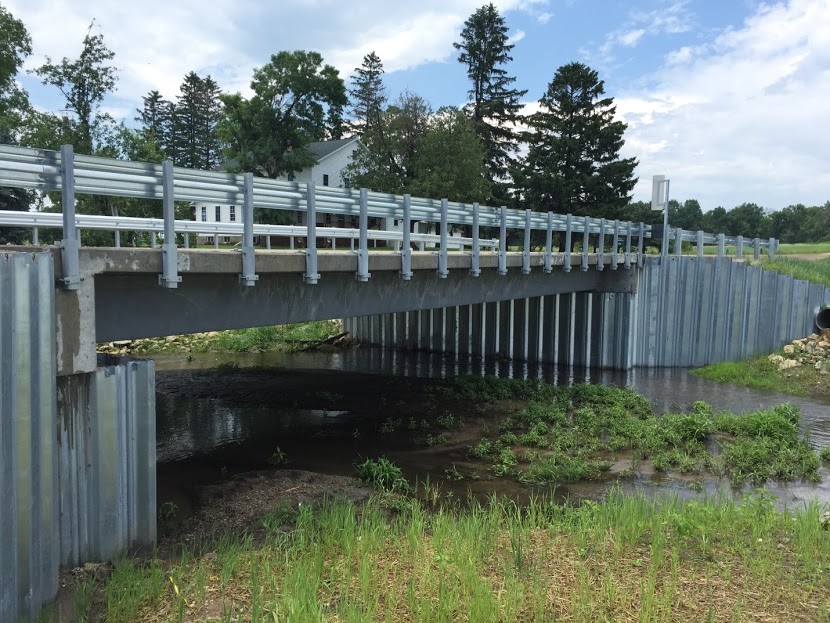

Buchanan County (Iowa) Engineer Brian Keierleber, P.E. was awarded a grant from the FHWA’s Innovative Bridge Research and Deployment Program (IBRD) to replace the Amish Sawmill Bridge at 1358 Dillon Avenue in Fairbank, Iowa. The $350,000 grant was awarded on the basis of using a trapezoidal bent steel girder section supported on Geosynthetic Reinforced Soil (GRS), laying the groundwork to install the first PBTG bridge in the United States.
Construction on the Amish Sawmill Bridge began in late summer 2015 and was completed in December 2015. The deck for this project was cast-in-place, rather than using modular pre-cast deck units, which added to the time of construction. It was built with a local crew, and was dedicated on January 8, 2016 with a ribbon-cutting ceremony featuring several government and transportation officials.
The idea quickly caught on, and three more PBTG bridges were constructed shortly after―two in West Virginia and one in Ohio. In February 2016, the Ohio Department of Transportation and Muskingum County were awarded an Accelerated Innovation Deployment (AID) Demonstration grant to replace a bridge on County Road 7 – Cannelville Road using PBTG technology with a steel Sandwich Plate System deck.
As of fall 2021, 11 states have installed PBTG, including a 19-bridge bundling project in Michigan.
The technology is appealing because it offers:
1) Significant cost savings
2) Ease in shipment and fabrication
3) Accelerated construction
4) Design versatility
5) Sustainability―steel is the world’s most recycled material and at the end of the bridge’s life, it will be transformed into another steel product.
With so many benefits, the press-brake-formed steel tub girder technology can help rebuild America’s infrastructure―an innovative and effective solution to the FHWA challenge.
For more information on how press-brake-formed tub girders can meet your bridge replacement needs, contact us for project assistance.
What are Press Brake Tub Girders?
Press-brake-formed tub girder (PBTG) is a new technology for short span bridge applications. It consists of modular galvanized shallow trapezoidal boxes fabricated from cold-bent structural steel plate (watch fabrication video). A concrete deck is recommended to be precast on the girder and the modular unit can be shipped by truck to the bridge site.
The system utilizes standard plate widths (based on availability) and is optimized to achieve maximum structural capacity, with most of the steel in the bottom flange and increased torsional stiffness. It is a closed system, since the girder is closed at the bottom. It is versatile for multiple-deck options.
The system utilizes Accelerated Bridge Construction practices, since it:
- Can be installed in one or two days
- Is modular, allowing the use of a precast deck
- Is cost-effective―as much as 1/3 less than a standard concrete girder structure
- Is simple to fabricate, requiring very little welding.
The Short Span Steel Bridge Alliance has developed standardized plans using standard plate sizes (60”, 72” 84”, 96”, 108”, 120”). The designs were developed to achieve maximum structural capacity and are available to use in the free-to-use, web-based design tool eSPAN140.
The press-brake-formed tub girder system is open source.
