Short Span Steel Bridges
Whiteside County (IL) Uses FHWA Funds for Accelerated Steel Bridge Project
Excerpt and Photos courtesy of Valmont Structures. To learn more about this project, please visit this link.
Russ Renner (Whiteside County Engineer) had a decision to make. “We were looking for a precast deck, which this has, because of the way we did it. That provided a good solution for us. Quick construction, quick installation. We’ve been pleased with the results.”
The Whiteside County Engineer (IL) needed to replace a four-lane bridge used by more than 3,000 cars a day. In addition, he needed an accelerated bridge construction (ABC) solution that would last at least a long time with the assistance of TWG Infrastructure Solutions.
Valmont U-BEAM
The PBTG, manufactured by Valmont and called the U-BEAM, is an innovative bridge solution that uses a performance-proven cold bending method. Cold-bent steel tub girders meet all AASHTO LRFD requirements and are approved for both state DOT and FHWA funded projects.
The girders can be hot-dip galvanized to protect from corrosion and vastly reduce maintenance needs.
The bridge will be fabricated within Valmont’s new facility in Jasper, TN, featuring a 60 foot long automated press brake, automated shear stud welding, and cold rolling machinery for camber.
A press-brake tub girder (found above) consists of a steel plate formed by cold bending with a press brake.
Project Features
The project was a complete bridge replacement 4-lanes wide x 3 spans long and was staged to allow the road to remain open to traffic during construction due to high traffic volume.

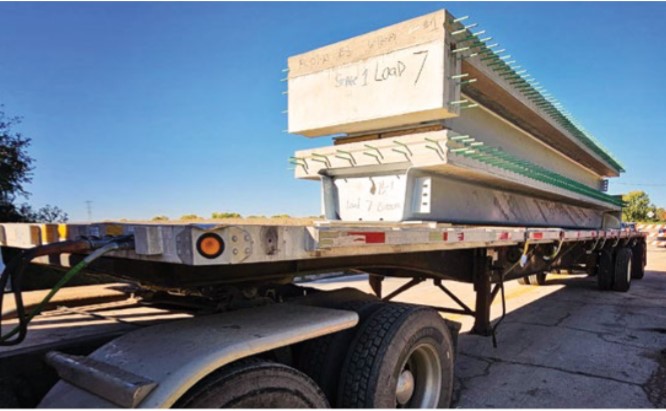

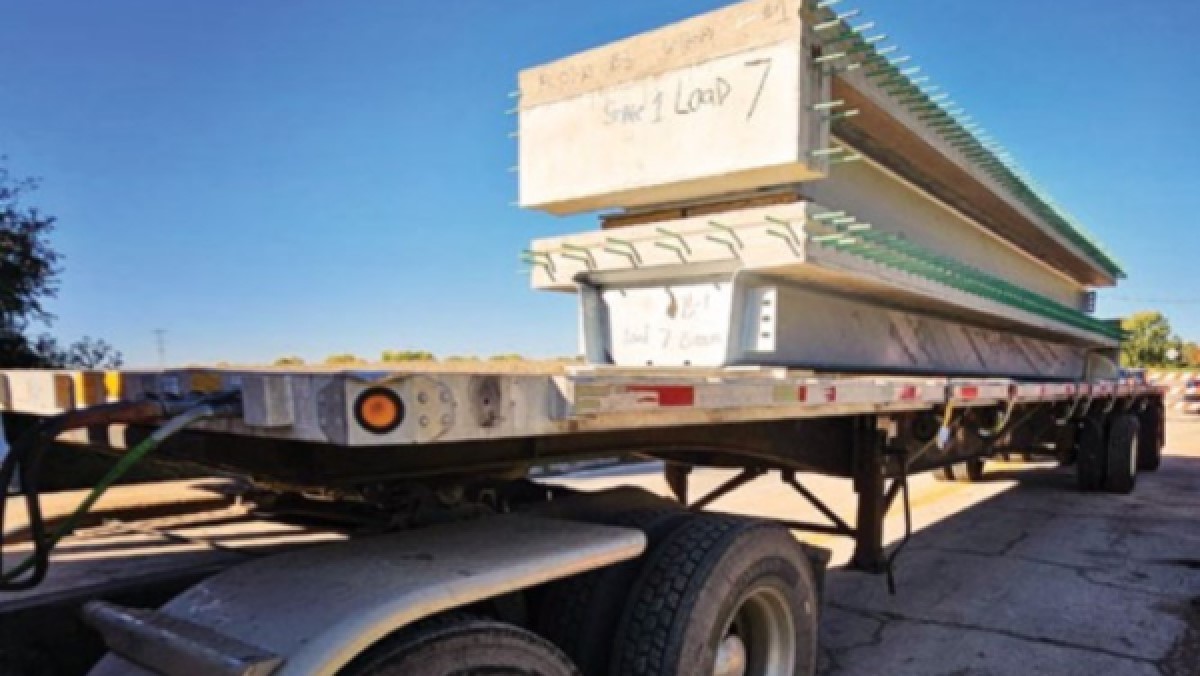

The 6,175 square foot, three-span bridge required (27) U30 U-BEAMs (supplied by Valmont Structures), including 18 at 30 feet and nine at 45 feet for Accelerated Bridge Construction which was estimated to save approximately 10-12 weeks of lane closures.
Delays in obtaining environmental approval for certain aspects of the construction required separating work into supply and install contracts. Doing so provided additional lead time to begin manufacturing precast deck sections
To view the Whiteside County Plans and Spec Book, please visit this link.

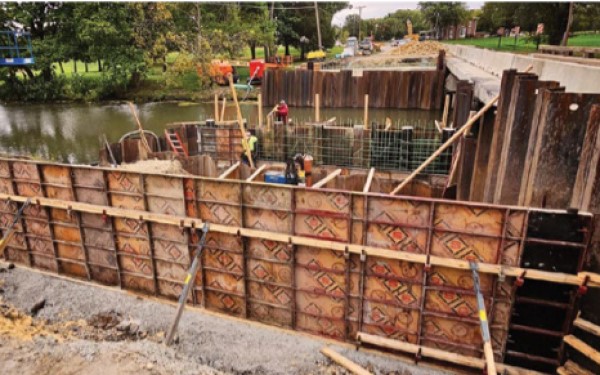

Bridge Construction being performed at the Dixon Avenue Bridge in Whiteside County, IL.
Illinois First PBFTG Project Using FHWA Funds
This was the first project where Federal Highway Administration funds were awarded for separate supply and install contracts, which allowed the County to purchase the U-BEAMs and get production going while legal issues pertaining to the installation were still being resolved to further accelerate completion of the project.
“This was a little bit unique in that we chose to purchase the beams separately from the rest of the contract,” Renner said. “But the state did allow us to buy the U-BEAMs using federal money as well. So, they’re covering 80% of the cost of the beams as well as on the construction project.”
To view a video of the construction of this project, please click on this link.
