Rolled Beam & Plate Girder
Plate Girder and Rolled Beams are Common Superstructures for Short Span Bridges
Plate girder and rolled beam (also known as wide flange shapes) are common superstructure elements for short span steel bridges.
- A rolled steel girder is a girder that has been fabricated by rolling a blank cylinder of steel through a series of dies to create the desired shape. These create standardized wide flange beam shapes up to 120 feet in length.
- A plate girder is a girder that has been fabricated by welding plates together to create the desired shape. The fabricator receives large plates of steel in the desired thickness, then cuts the flanges and web from the plate in the desired length and shape. Plate girders can have a greater height than rolled beam girders and are not limited to standardized shapes. Plate girders can span up to 300+ feet in length.
If you are looking for a rolled beam or plate girder bridge supplier, please see Find-a-Supplier for a complete company directory.
NSBA Posts Updated Guide to Navigating Routine Steel Bridge Design
This updated free guide from NSBA walks engineers through the design process, focusing on the specific provisions of the AASHTO specifications that apply to routine bridges.
On-Demand Steel Bridge Video Series: Learning By Example
A distinguished panel of 8 industry experts to present case studies that offer innovative and cost-effective examples of steel bridge replacement projects.
Steel Industry Accelerates Rebuild of I-95 Bridge Project
Cleveland Cliffs is providing steel to High Steel Structures for the accelerated permanent reconstruction of a bridge section of I-95 in Philadelphia that collapsed in June.
West Virginia DOT Publishes Standard Bridge Plans for Short Span Bridges
The SSSBA Bridge Technology Center worked with the West Virginia Department of Transportation to developed standard bridges plans for composite rolled beam and plate girders.
SSSBA Provides Bridge Owners With Complimentary Design Details
The complimentary service allows for the production of standard rolled beam and plate girder designs for highway bridge applications.
Steel Story – FF Journal
Poised for an infusion of cash, America’s infrastructure looks to steel for low maintenance, lightweight solutions that are quick to install.
County Saves $30,000 Using a Prefabricated Steel Bridge Instead of Concrete
Whitman County, Washington installed a prefabricated steel bridge using a local county crew and saved $30,000 over a concrete structure.
Philadelphia Reconstruction Project Wins NSBA Steel Bridge Award
The Vine Street Expressway (I-676) Bridge reconstruction project wins the National Steel Bridge Alliance 2020 Short Span Prize Bridge Award.

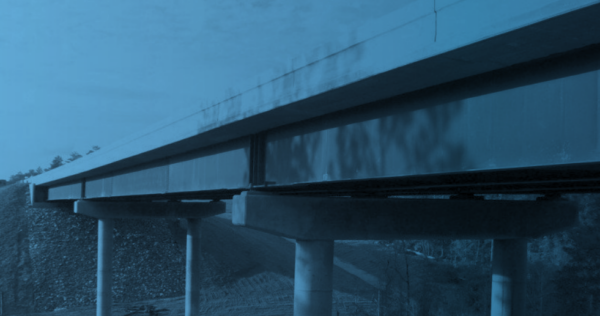

NSBA Guide to Navigating Routine Steel Bridge Design
